Memory Reclamation#

The main reason for Redis's strong performance is its memory-based storage. However, the memory size of a single-node Redis should not be too large, as it can affect persistence or master-slave synchronization performance.

In the configuration file, you can set the maximum memory for Redis using maxmemory <bytes>, such as maxmemory 1gb. When the memory reaches the limit, it can no longer store data.

This leads to the memory reclamation strategy.

Expiration Strategy#

expire <key> <expireTime> can set a time-to-live (TTL) for a key. When it expires, accessing it will return nil.

image.png|500

image.png|500

How does Redis know if a key has expired?

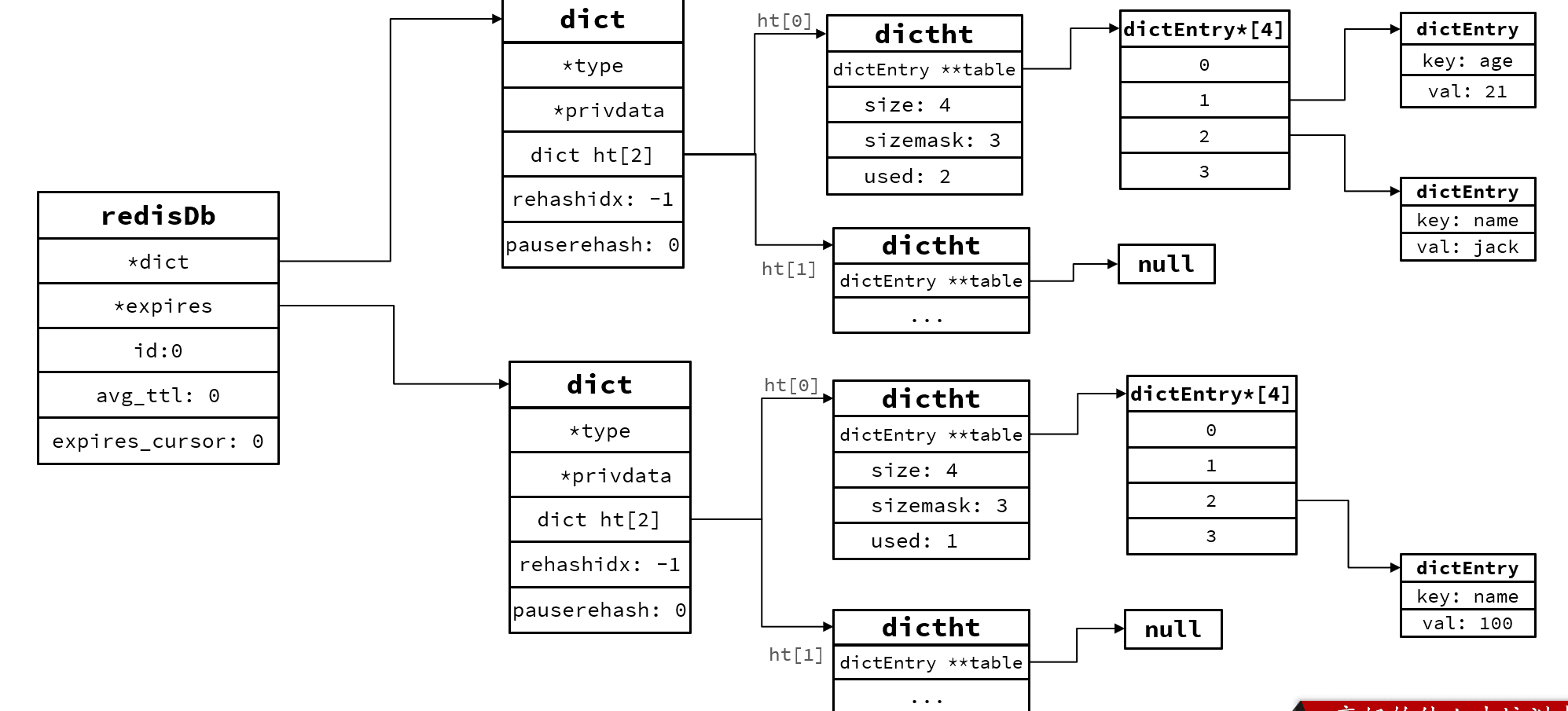

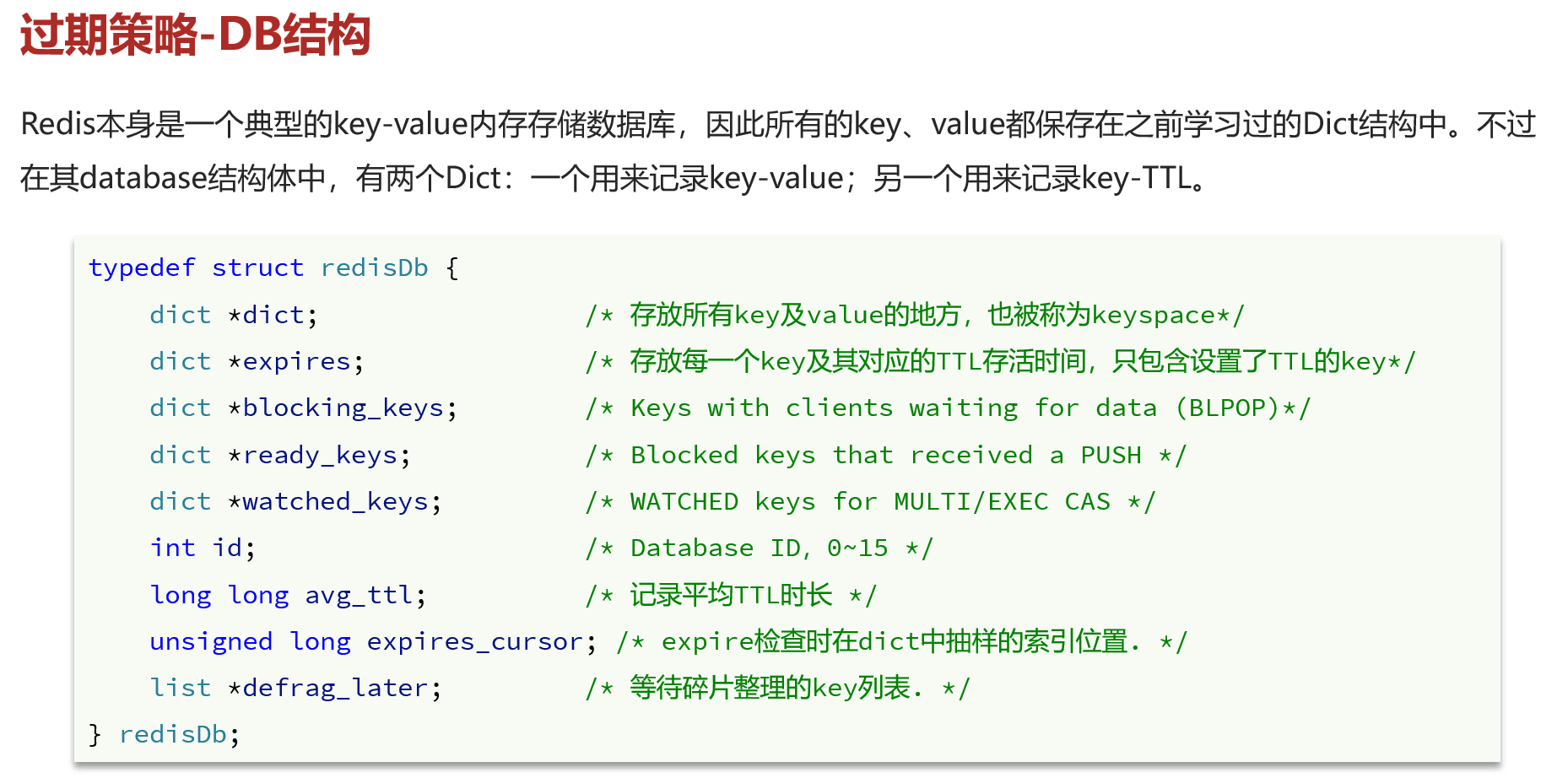

It uses two dictionaries to record key-value and key-ttl separately.

Does it delete immediately when the TTL expires?
For example:
Lazy deletion
Periodic deletion

Lazy Deletion#

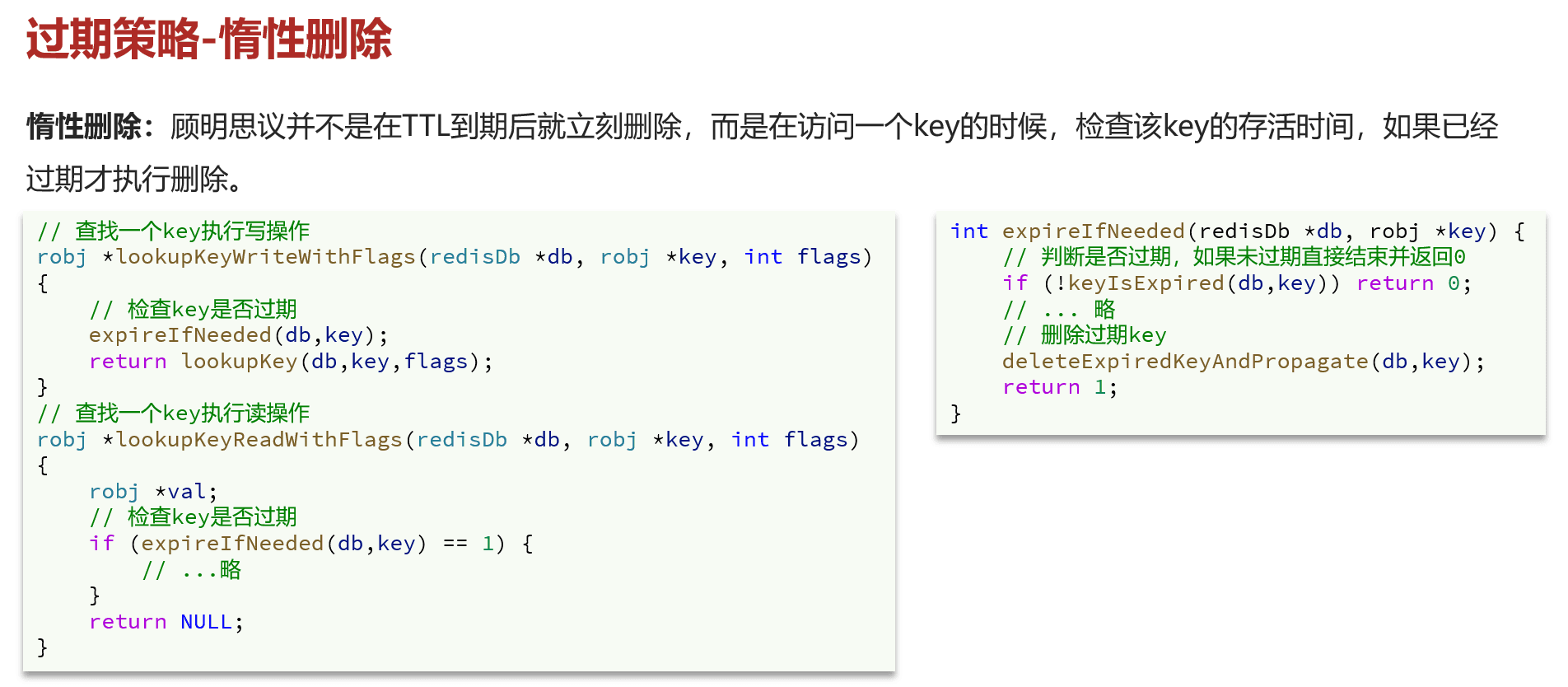

It does not delete immediately when the TTL expires, but checks the key's lifespan when accessing the key. If it is expired, it deletes it.

image.png|500

Periodic Deletion#

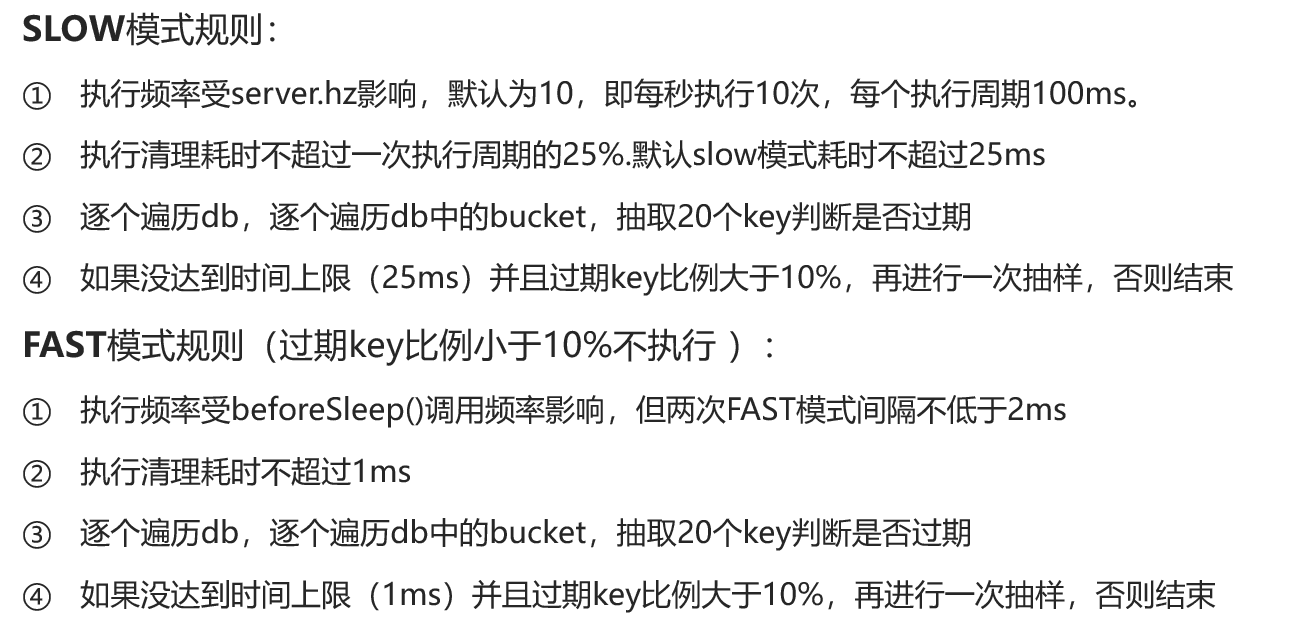

Periodic deletion: This is done through a scheduled task that periodically samples some expired keys and then executes deletion. There are two execution cycles:

  • Redis sets a scheduled task serverCron() during initialization, which cleans expired keys at the frequency of server.hz, in SLOW mode.
  • Before each event loop in Redis, the beforeSleep() function is called to clean expired keys, in FAST mode.

image.png|500

image.png|500

Eviction Strategy#

Memory eviction: When Redis memory usage reaches the set threshold, it actively selects some keys to delete in order to free up more memory.

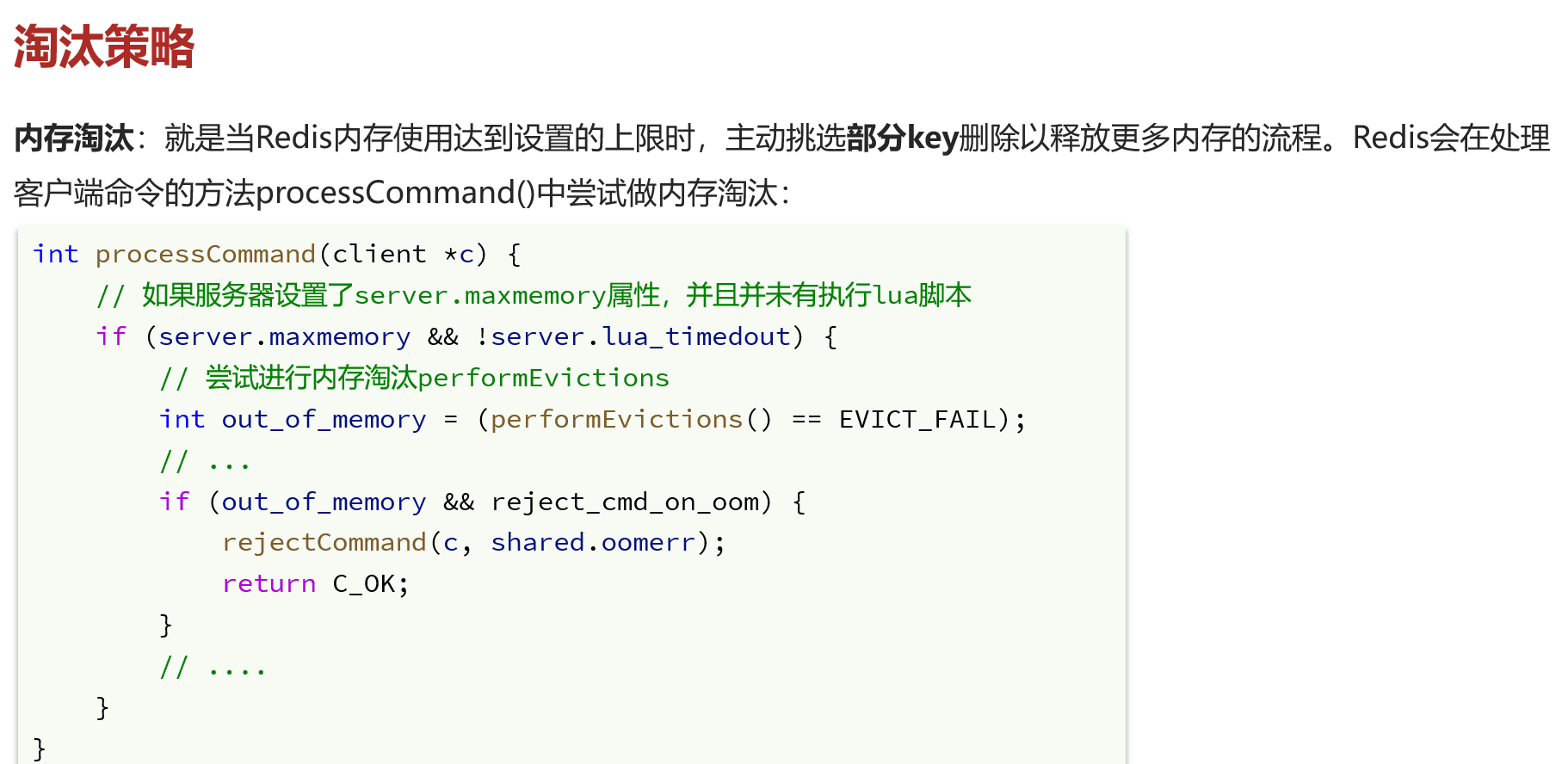

When processing commands, if memory is insufficient, and maxmemory is set and it is not a Lua script being executed, it will first attempt to evict memory.

image.png|500

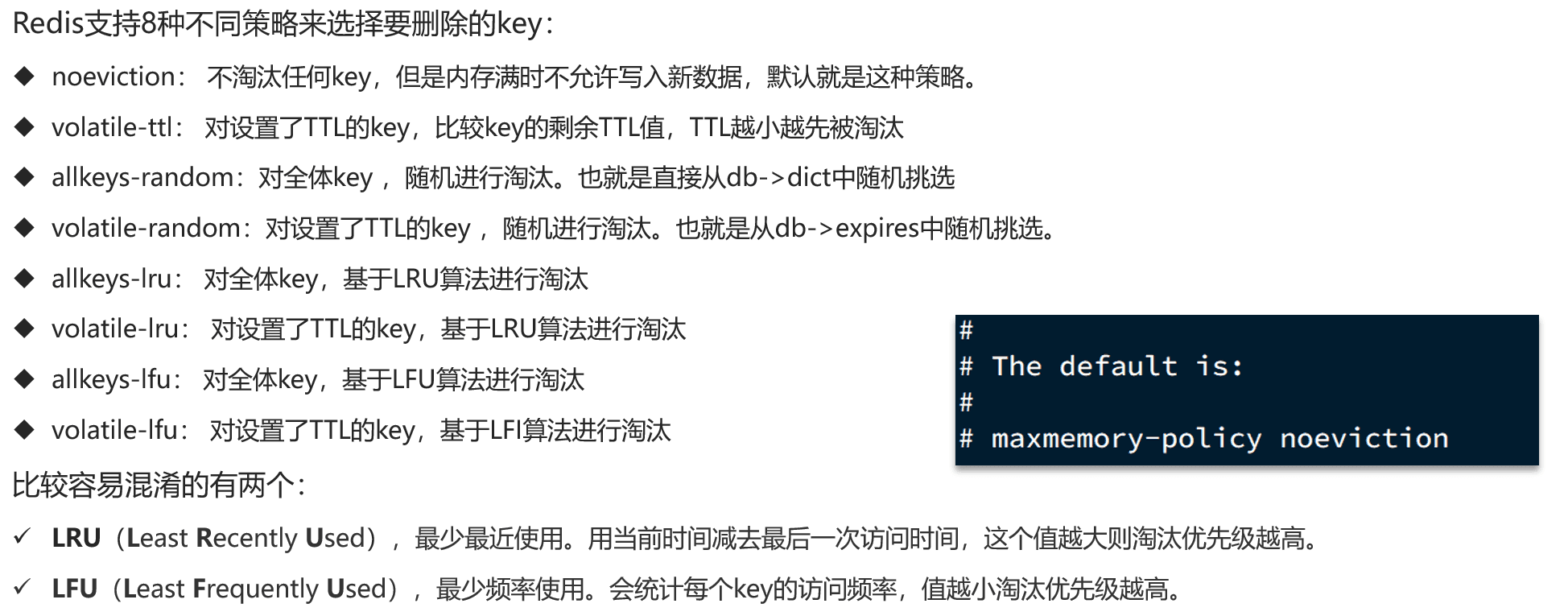

Eviction Strategy

image.png|500

How to know LRU and LFU?

image.png|500

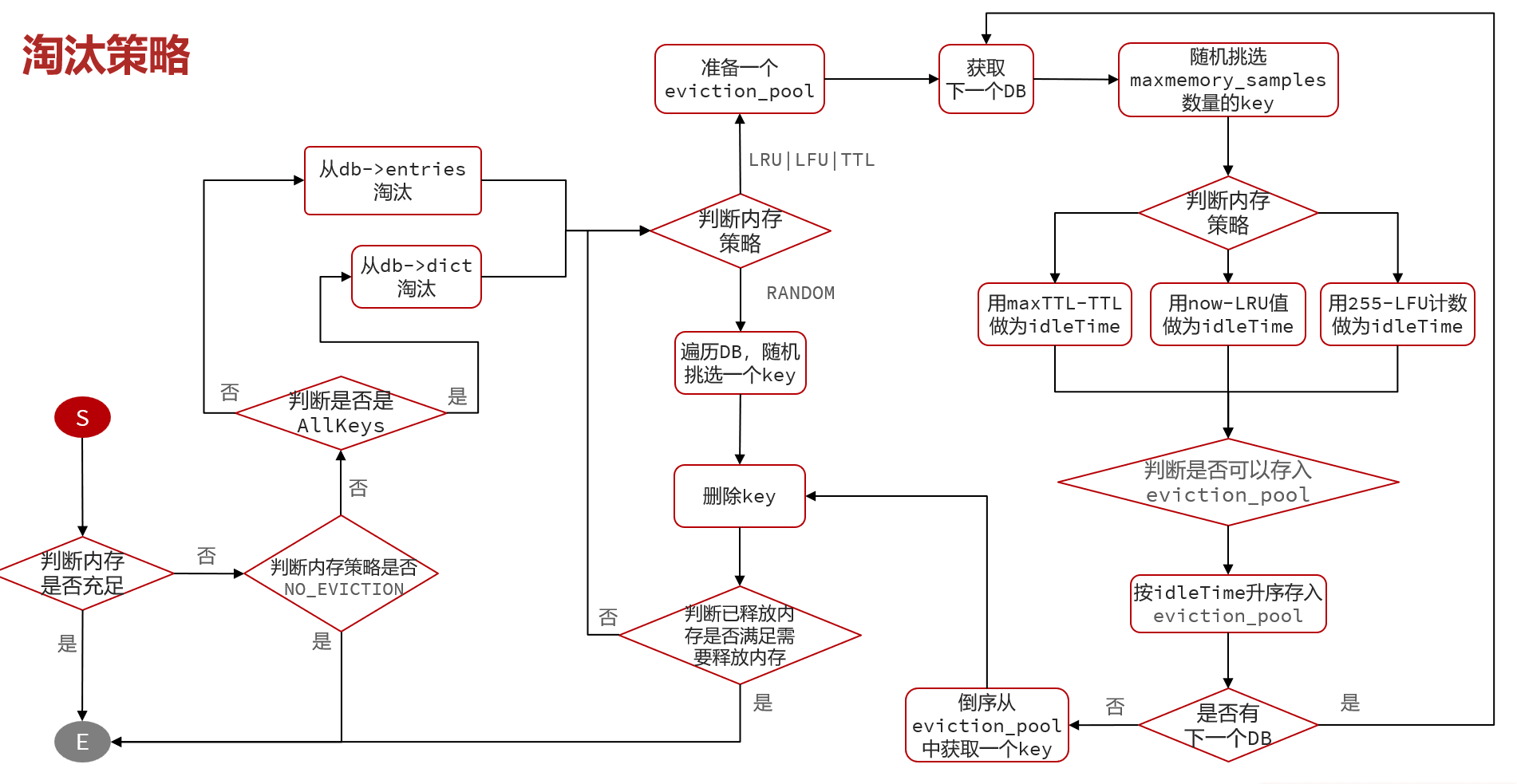

Eviction Strategy Flowchart

For TTL, the longer the lifespan, the more it should be deleted; for LRU, the less recently accessed, the more it should be deleted; for LFU, the less frequently accessed, the more it should be deleted.

image.png|500
