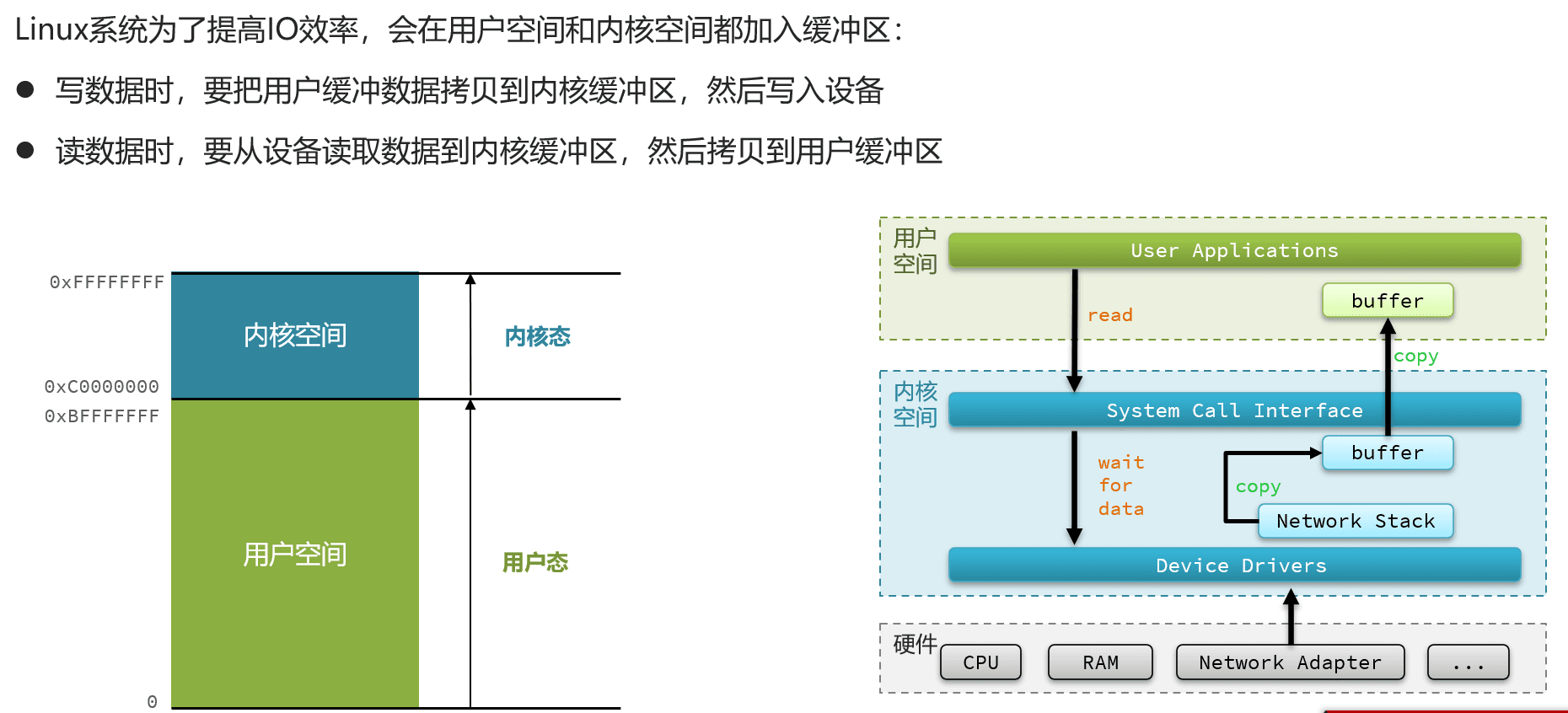

User Space and Kernel Space#
IO Models#
"UNIX Network Programming" summarizes five types of IO models:
- Blocking IO
- Nonblocking IO
- IO Multiplexing
- Signal Driven IO
- Asynchronous IO
The user buffer in user space waits for data to be ready in the kernel buffer in kernel space.
The hardware device prepares data for the kernel buffer in kernel space.
The user buffer in user space reads data from the kernel buffer in kernel space.

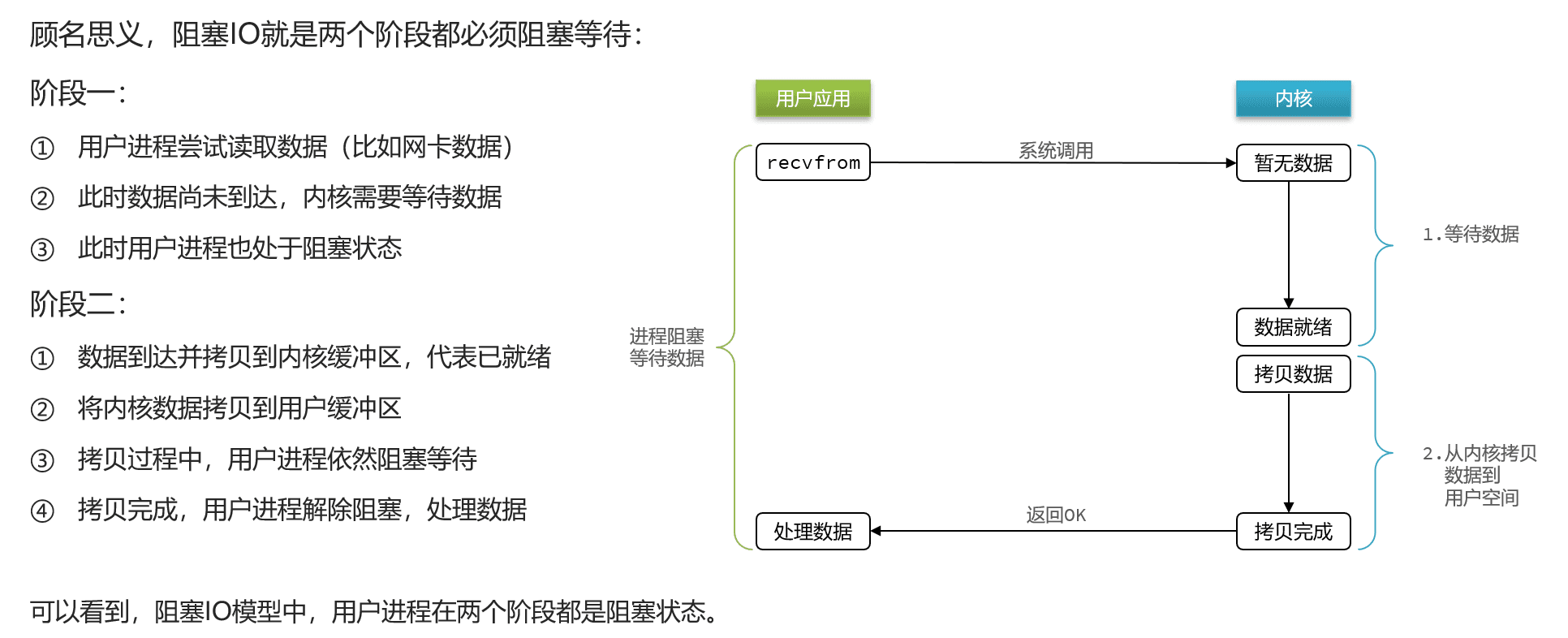

Blocking IO#

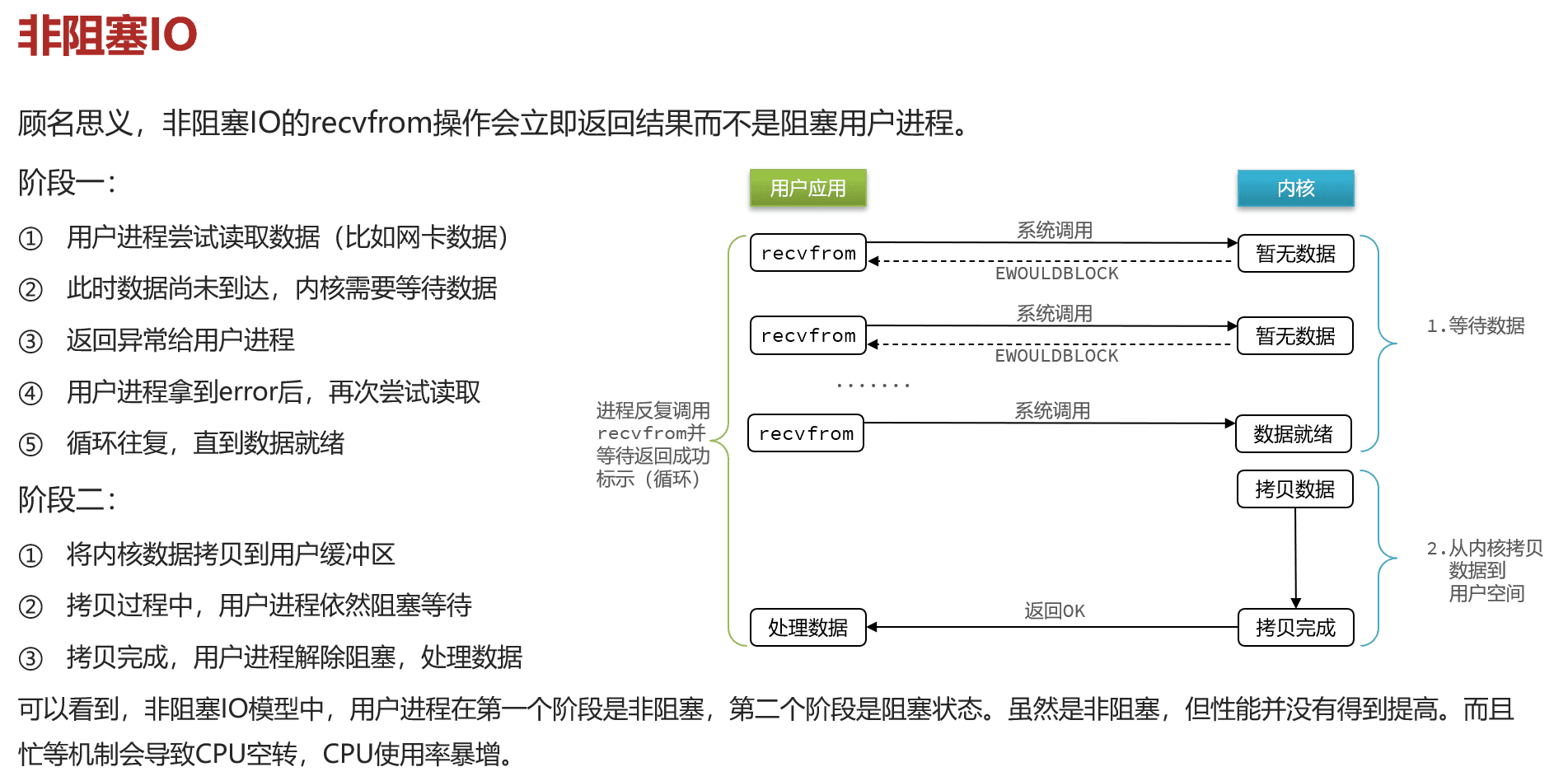

Nonblocking IO#

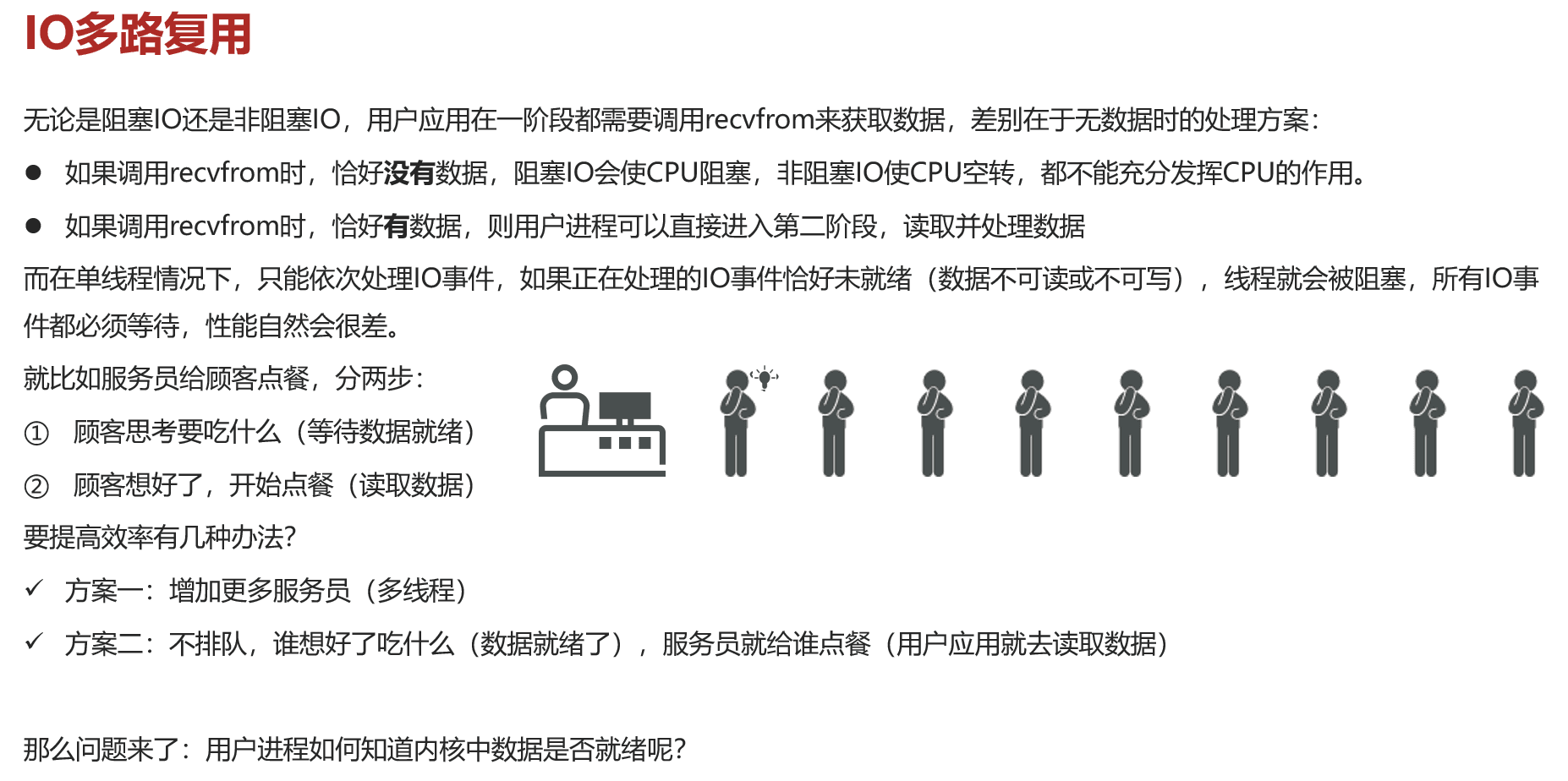

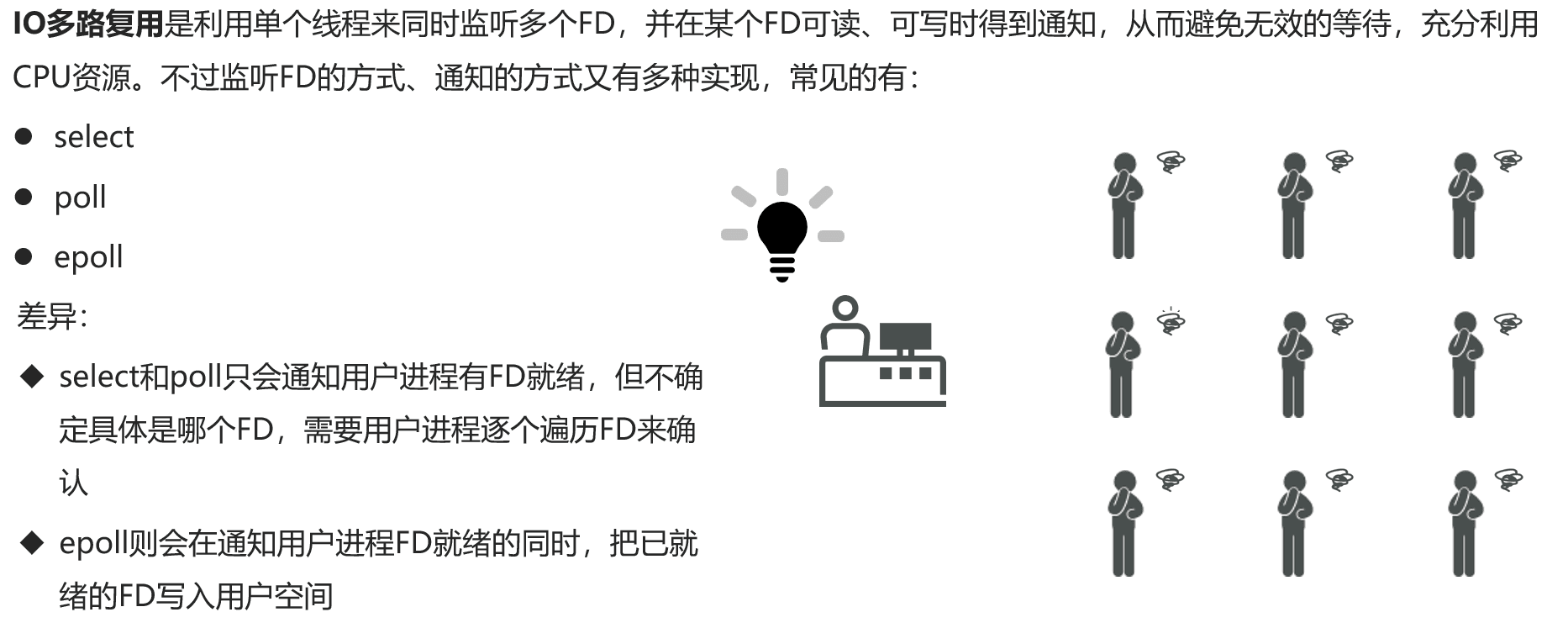

IO Multiplexing#
Whether it is blocking IO or nonblocking IO, the user needs to use recvfrom to obtain data at one stage, but both need to wait for data to be ready; it is just a matter of blocking wait or non-blocking wait. In any case, only one can be processed.
However, if multiple data sources are being listened to simultaneously, the data source that is ready will be processed. This is IO multiplexing.
In Linux, file descriptors can be associated with everything, including network sockets, allowing multiple fds to be waited on simultaneously, processing whichever is ready.
There are various schemes for IO multiplexing, such as select, poll, and epoll. Select and poll can only determine if there are any fds ready in the fd set, but not which specific ones.

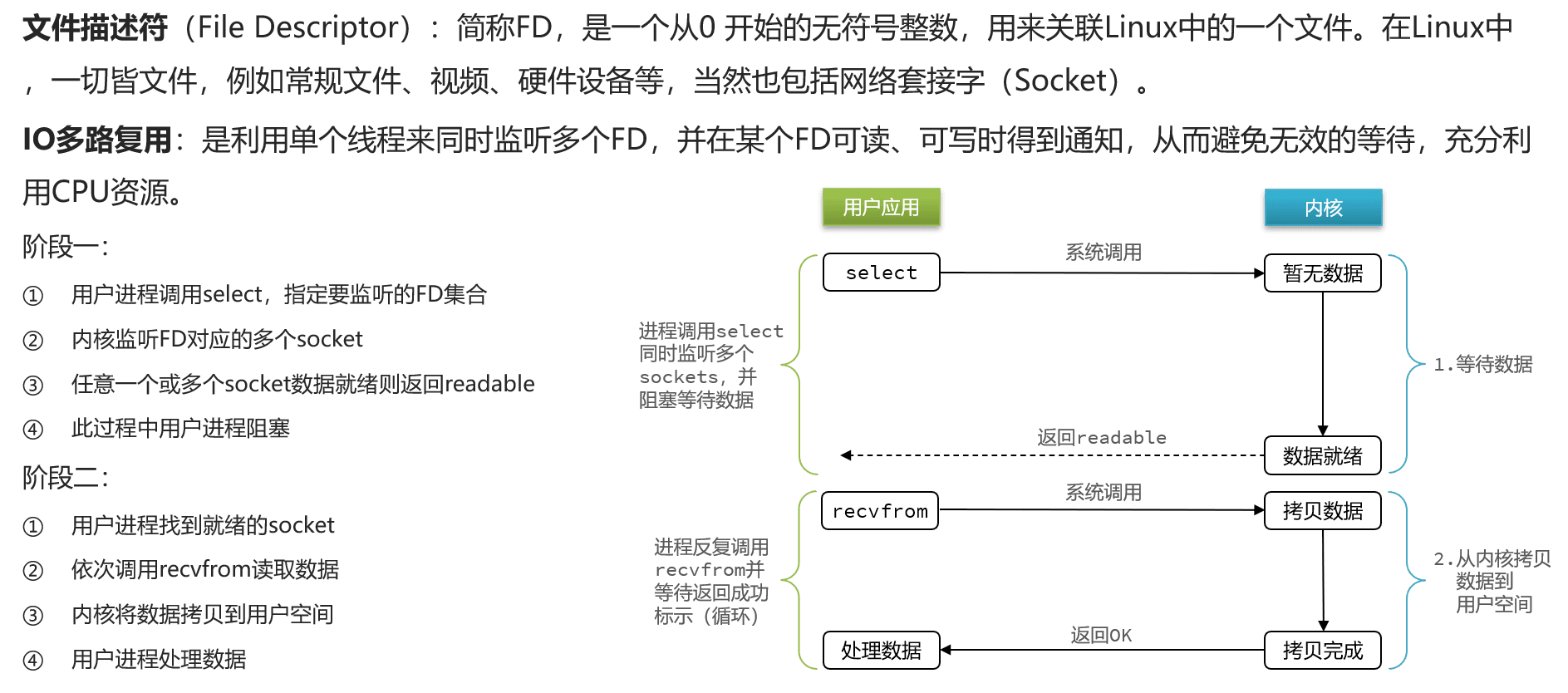

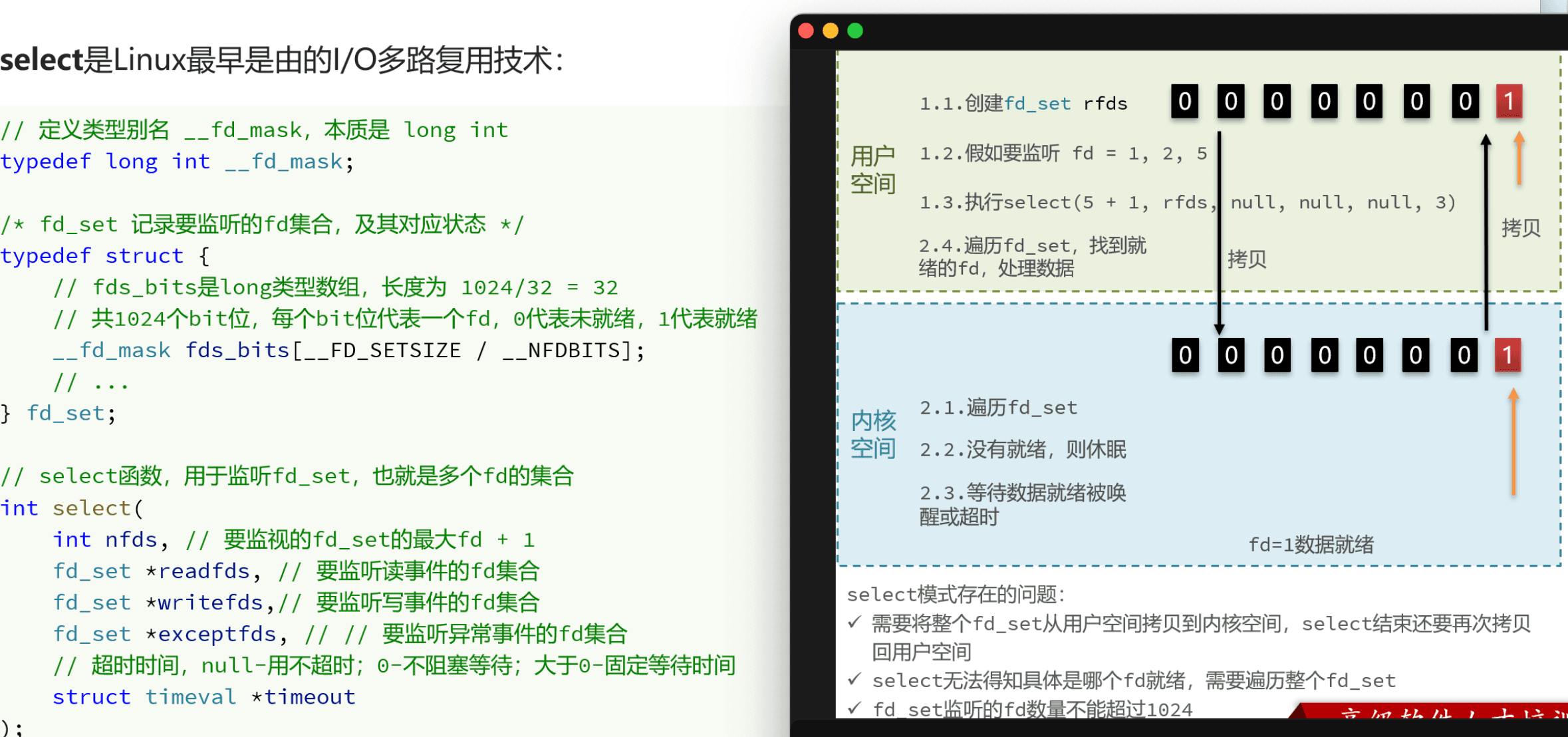

IO Multiplexing - select#
Convert fds into binary flags for storage. For example, listening on fds 1, 2, and 5 means marking the 1st, 2nd, and 5th bits from the right as 1, and passing this to the kernel space.
If the corresponding bits of the fds are ready, they will be marked as 1; otherwise, they will be marked as 0. The bitmap is then traversed and passed to user space, where a bit marked as 1 indicates readiness.
The advantage is that it saves a lot of space; the downside is that it cannot exceed 1024, and fd_set requires copying back and forth, and checking requires a full traversal.

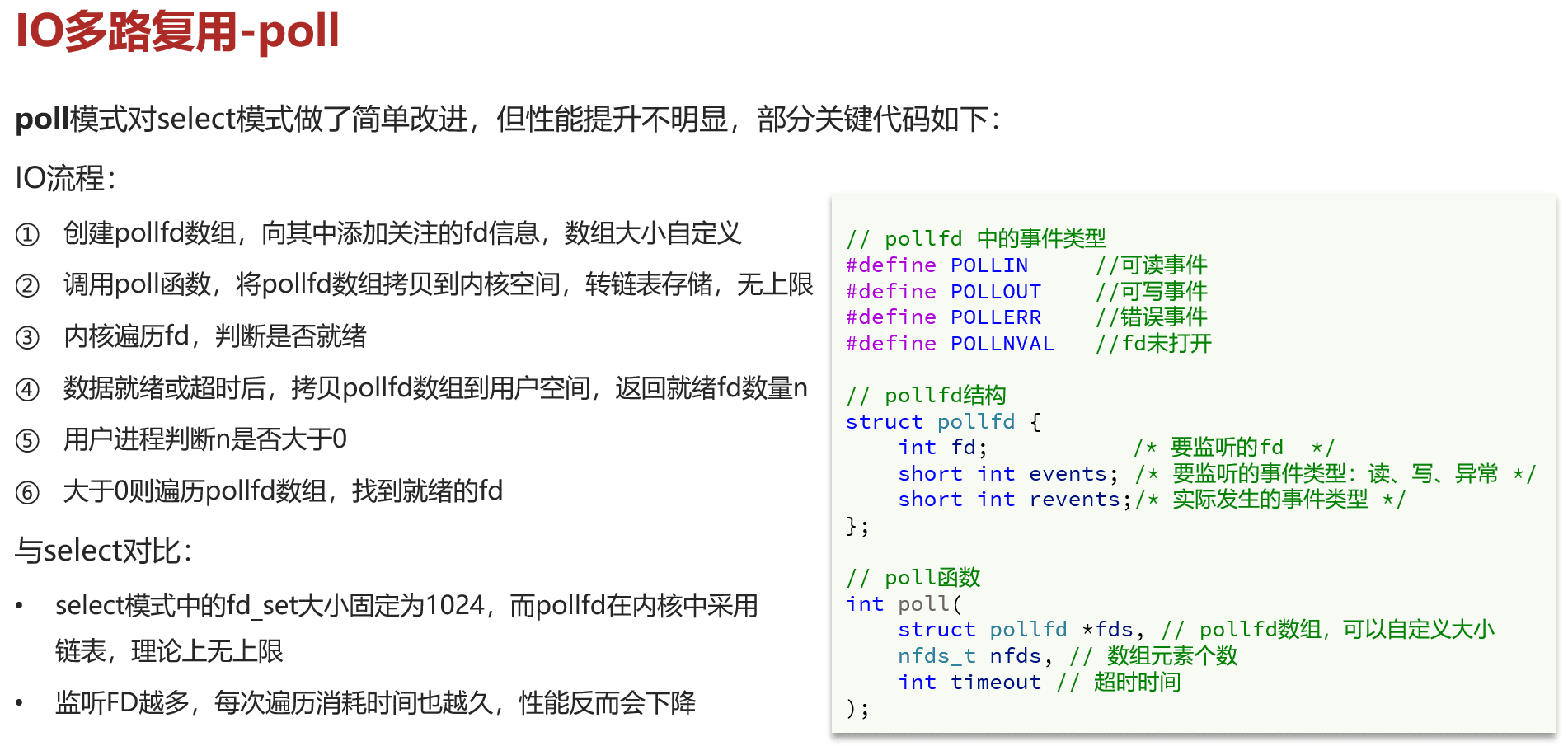

IO Multiplexing - poll#
Poll enhances the 1024 limit of select by using a linked list for storage, theoretically allowing for unlimited fds, but this is unnecessary as longer lists consume more performance during traversal.

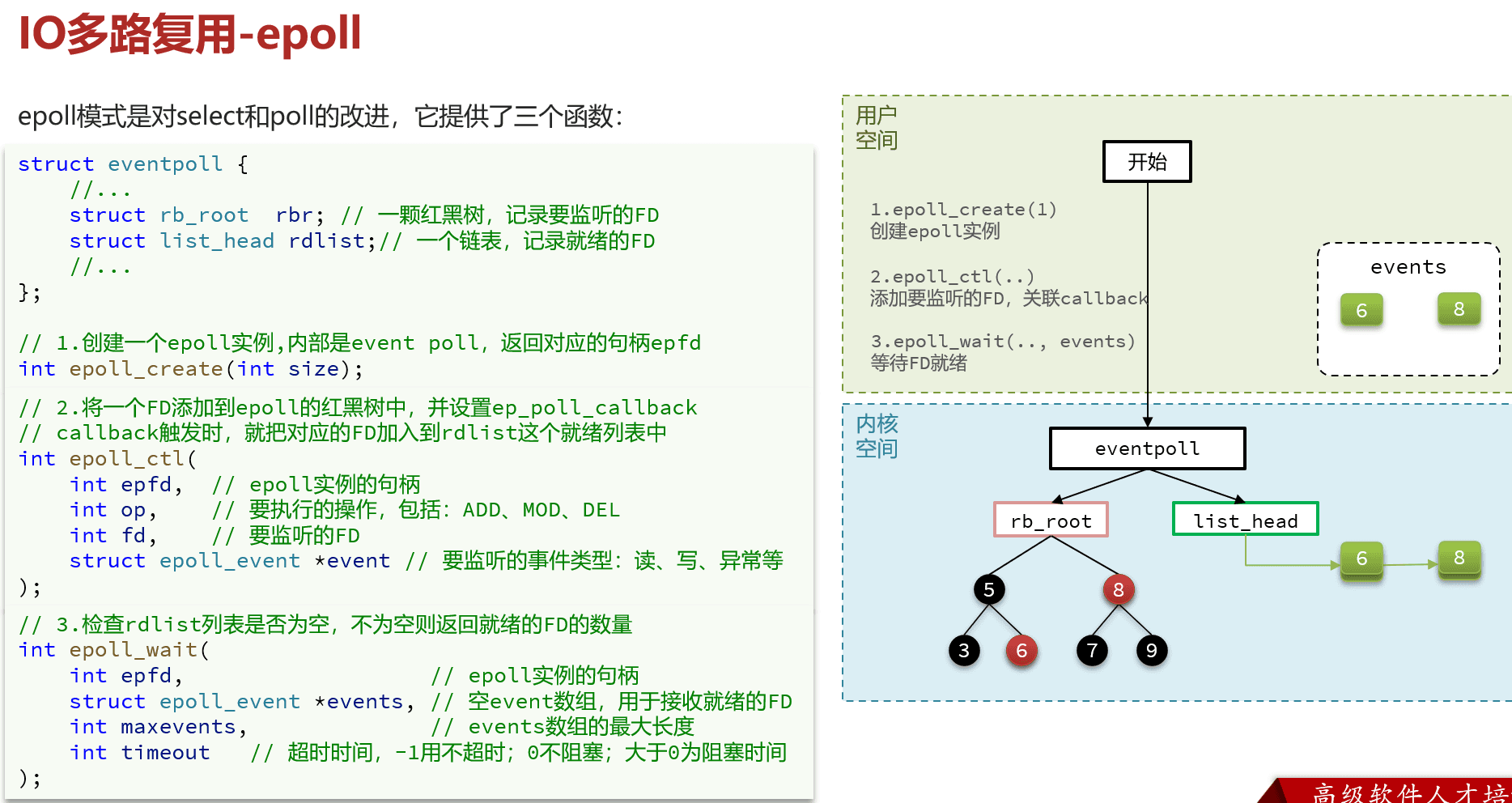

IO Multiplexing - epoll#
Epoll uses a red-black tree to maintain a record of all fds that need to be monitored in kernel space; it also maintains a ready list to store all ready fds.
Process: The user space creates an epoll instance using epoll_create, adds or removes fds from the red-black tree using epoll_ctl, and waits for ready events with epoll_wait, retrieving ready fds from the ready list.
When a fd is ready, the kernel adds it to the ready list. Epoll_wait only needs to extract ready fds from the ready list, without traversing the entire fd set.
Advantages: No fd limit, no need to copy the entire fd set, only passing single fds and operations, only returning ready fds, utilizing the ep_poll_callback mechanism to monitor fd states without traversing all fds.

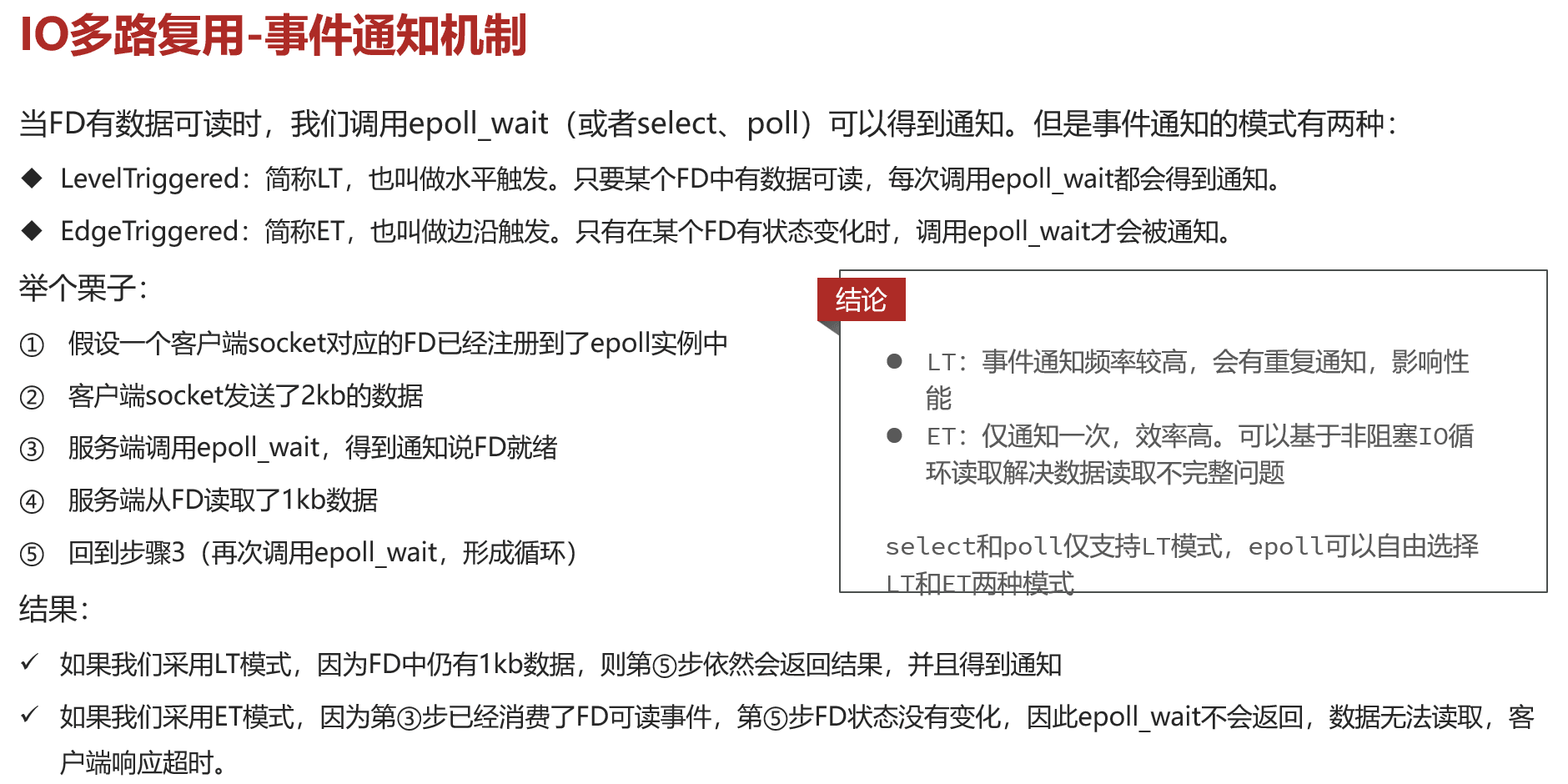

IO Multiplexing - Event Notification Mechanism#
When an event occurs on a monitored fd (such as data being readable or writable), the kernel notifies the epoll instance through a callback mechanism, such as epoll's ep_poll_callback.
The kernel adds the ready fds to the ready list of the epoll instance. When the application calls epoll_wait, it can directly retrieve the fds that have events from the ready list for processing, without traversing all monitored fds.
In practice, using the ET mode means that only new data will trigger notifications; for already notified data, it will continuously perform non-blocking reads until completed.

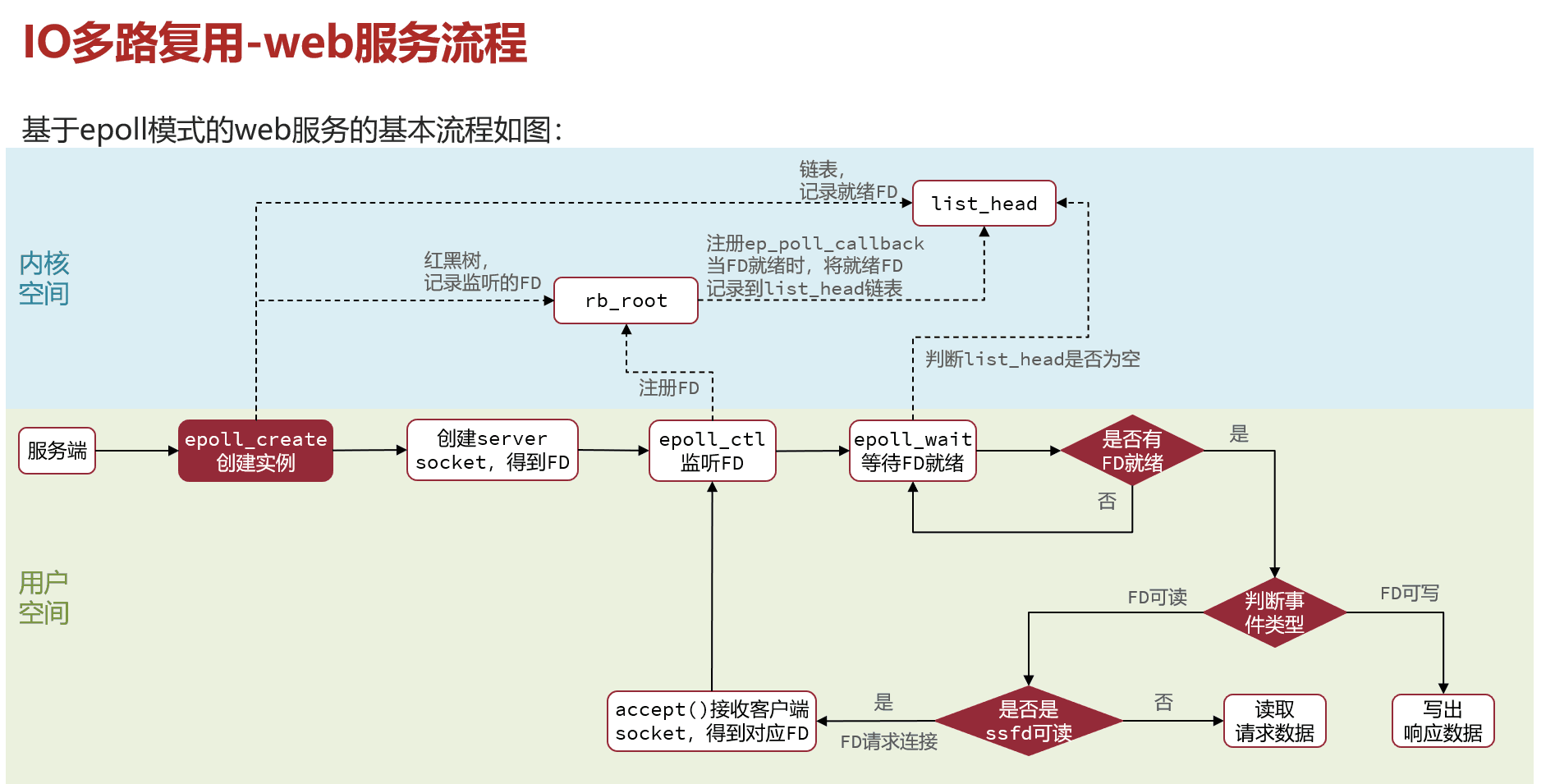

IO Multiplexing - Web Service Process#

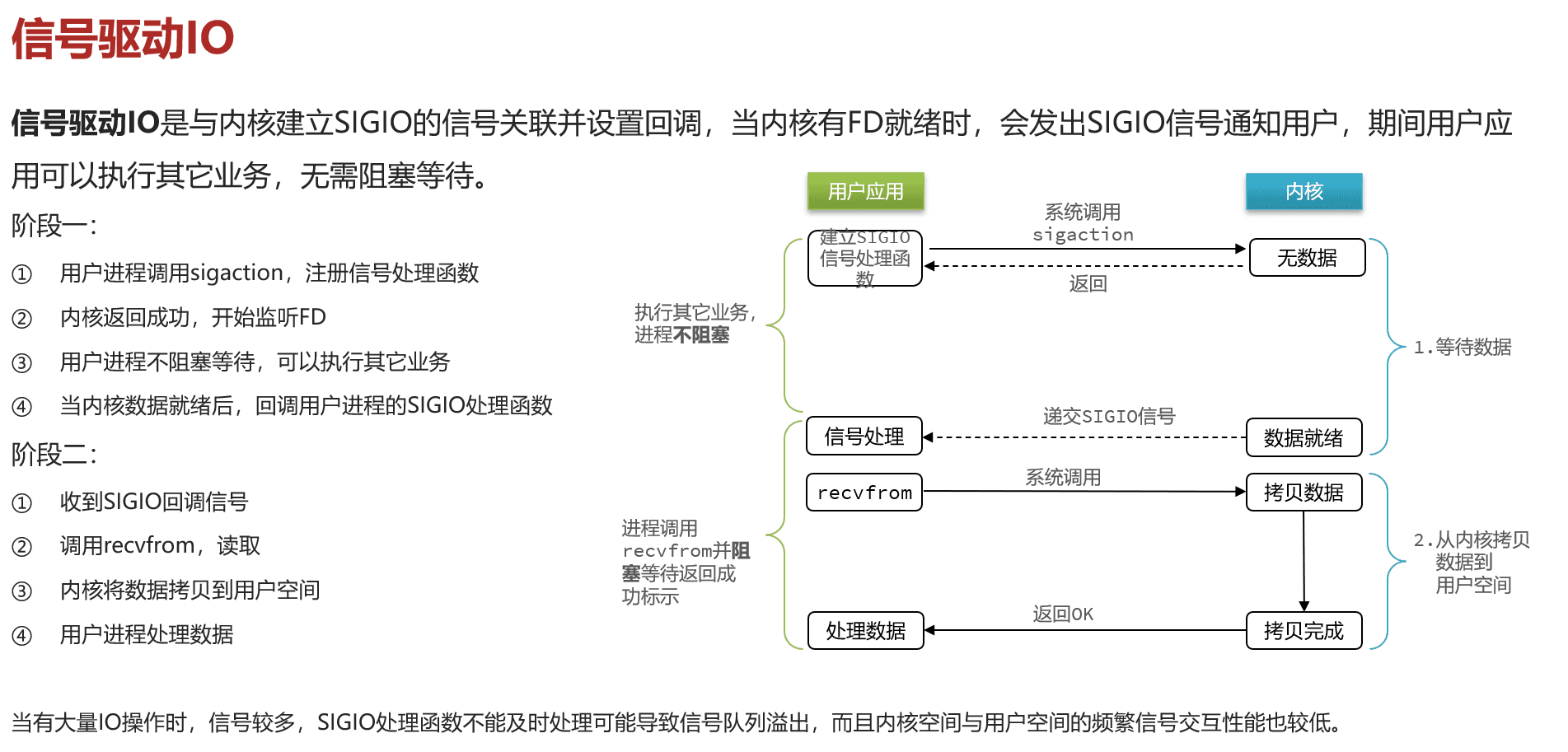

Signal Driven IO#
Signal driven IO is a nonblocking IO model.
Applications can set a signal handler function, which the kernel sends to the process when the fd is ready. Upon receiving the signal, the process immediately executes recvfrom to read data.
Advantages: Non-blocking, no need for active polling.
Disadvantages: Reading data can still block normally, signal handling incurs overhead, signals may be lost, and it is not as effective as IO multiplexing in high concurrency.

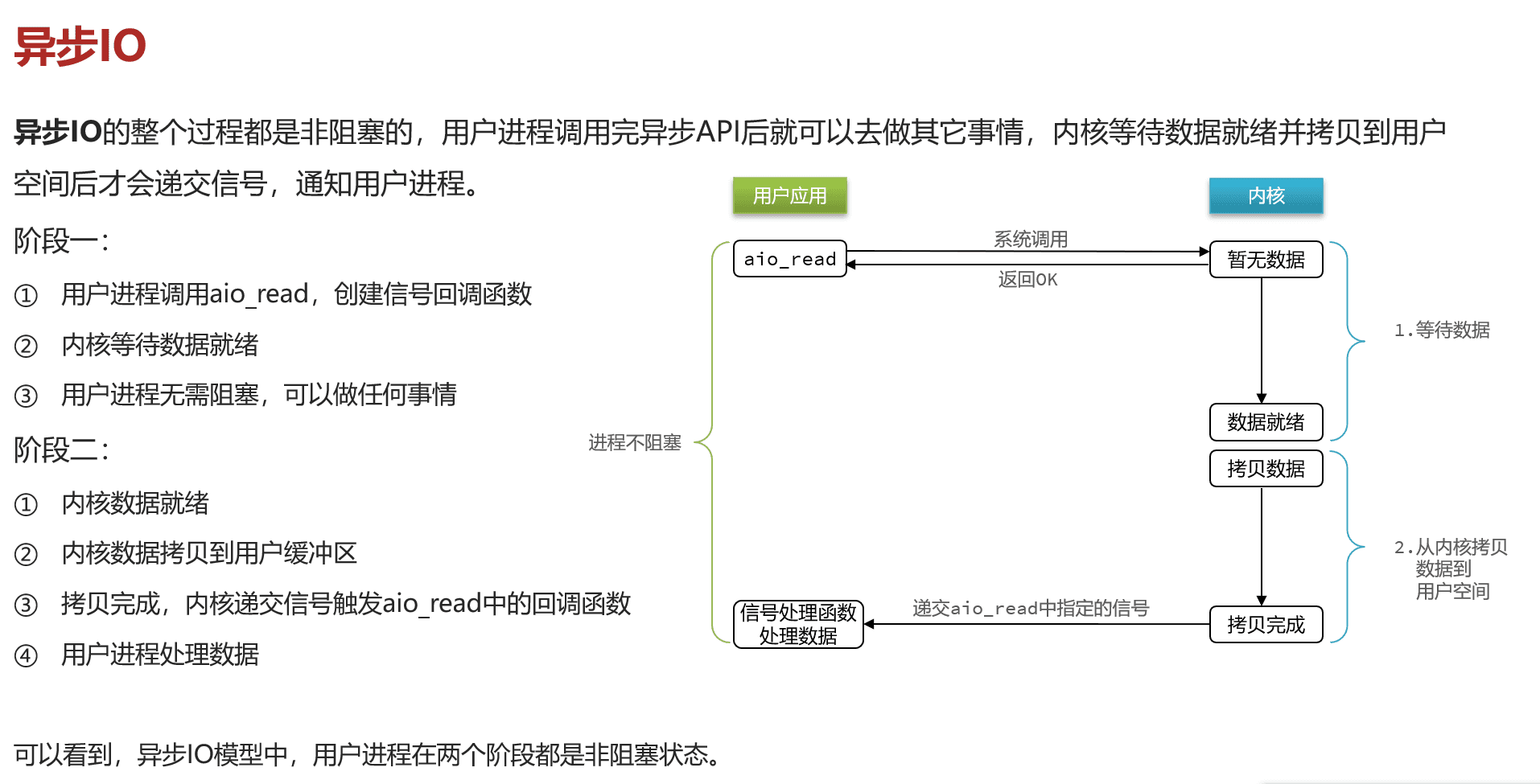

Asynchronous IO#
Asynchronous IO returns immediately after the user initiates an IO operation, without any blocking phase.
The kernel is responsible not only for waiting for data to be ready but also for copying data from kernel space to user space. Only after the entire IO operation is complete will the kernel notify the user process based on the callback function or signal registered by the user.
Advantages: The user process is completely non-blocking from the initiation of the IO request to receiving the completion notification.
Disadvantages: Complexity.

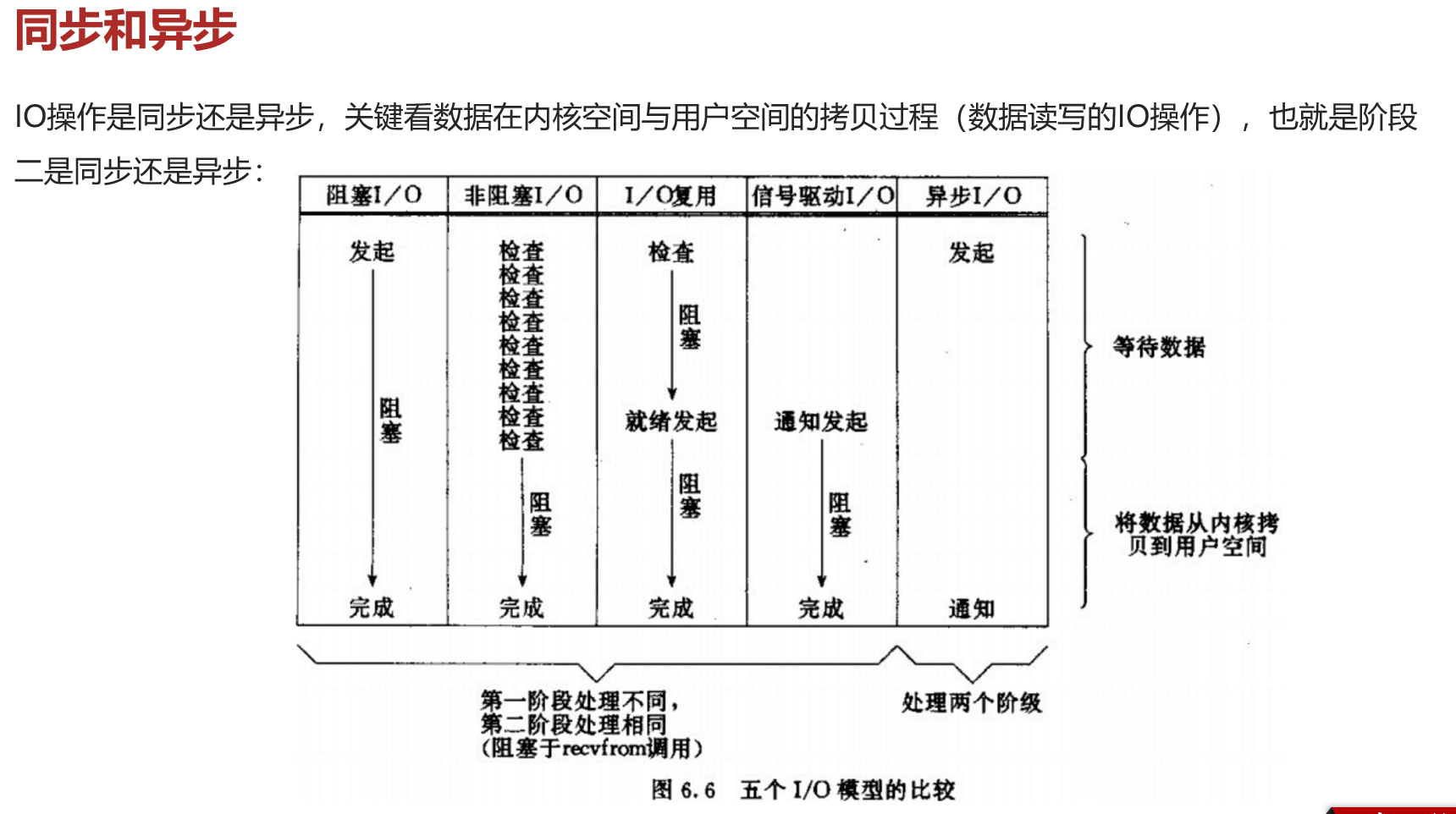

Synchronous vs Asynchronous#
Asynchronous IO is also asynchronous during the second phase, which is the data reading phase.
Is Redis Single-threaded?#
Is Redis single-threaded or multi-threaded?
- The core business part of Redis, command processing, is single-threaded.
- Overall, Redis is multi-threaded.
During the version evolution of Redis, multi-threading support was introduced at two important time points:
- Redis V4.0: Introduced multi-threaded asynchronous processing for some time-consuming tasks, such as the asynchronous delete command unlink.

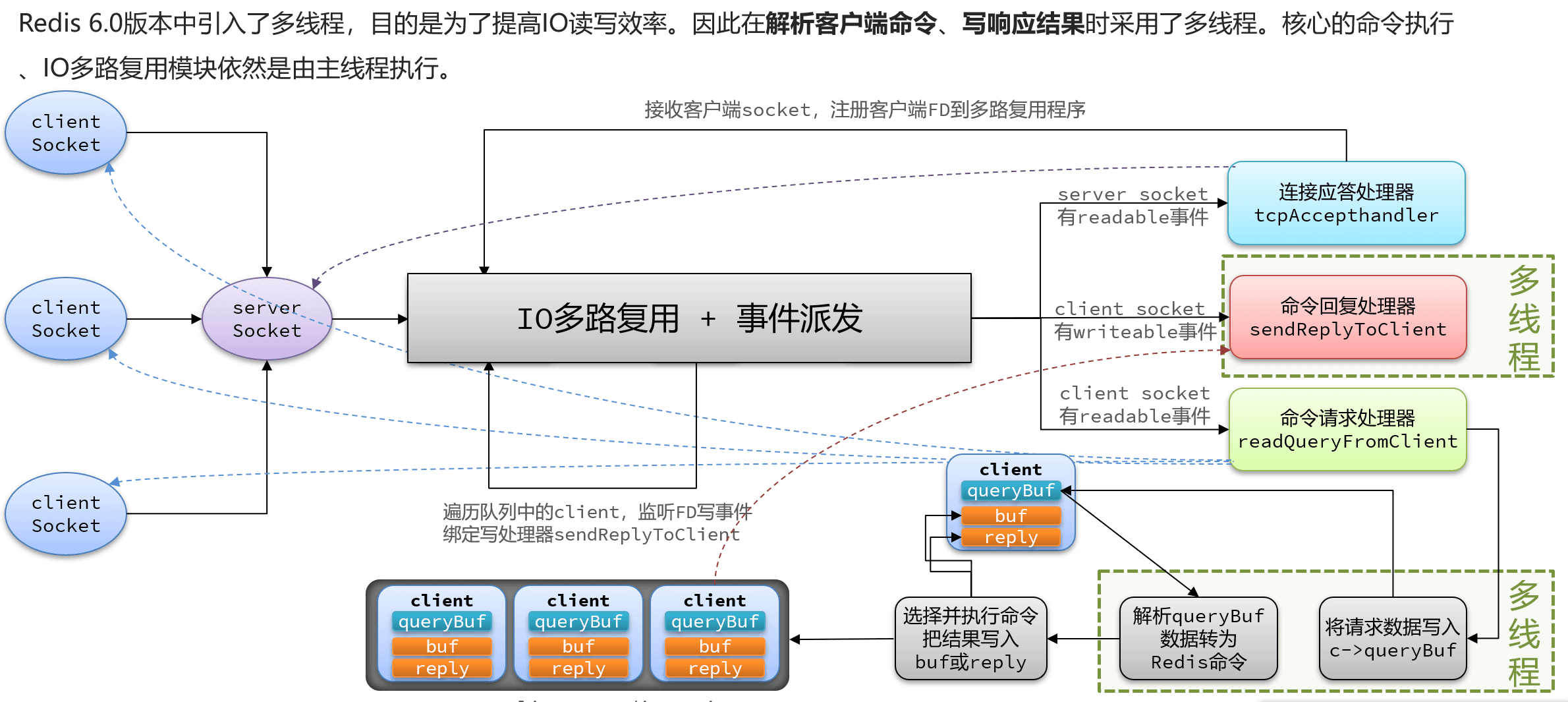

- Redis V6.0: Introduced multi-threading in the core network model to further improve utilization of multi-core CPUs.
For the core network model of Redis, it was single-threaded before Redis V6.0, utilizing IO multiplexing technologies like epoll to continuously handle client situations in an event loop.
Why did Redis choose single-threading?
- Redis performs pure in-memory operations for command processing, which is already very fast. The performance bottleneck lies in network IO rather than execution speed, so focusing on optimizing network IO is more necessary than multi-threading.
- Multi-threading can lead to excessive context switching, resulting in unnecessary overhead.
- Introducing multi-threading can also lead to thread safety issues, requiring the introduction of thread locks and similar safety measures, which can waste performance.

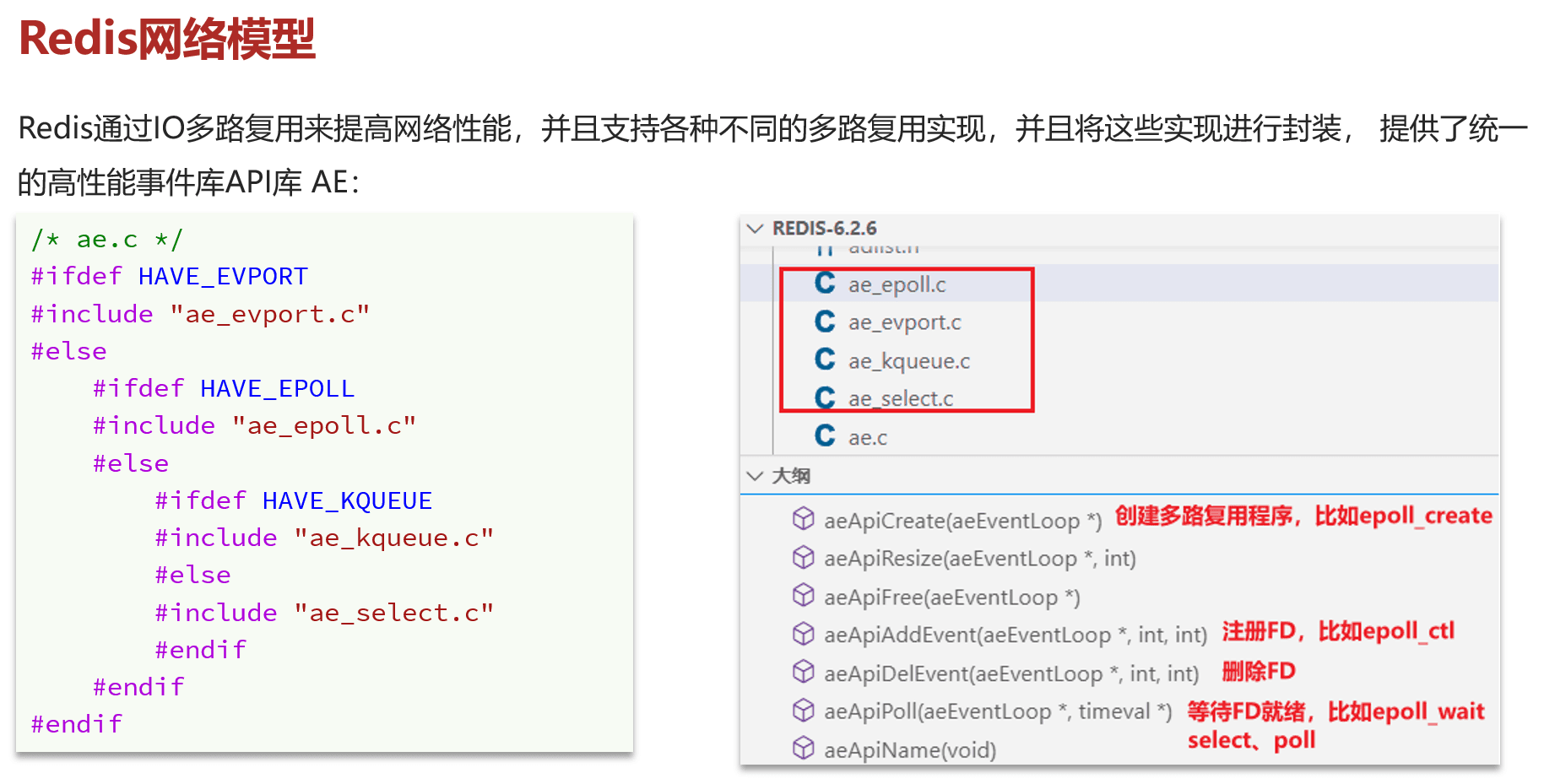

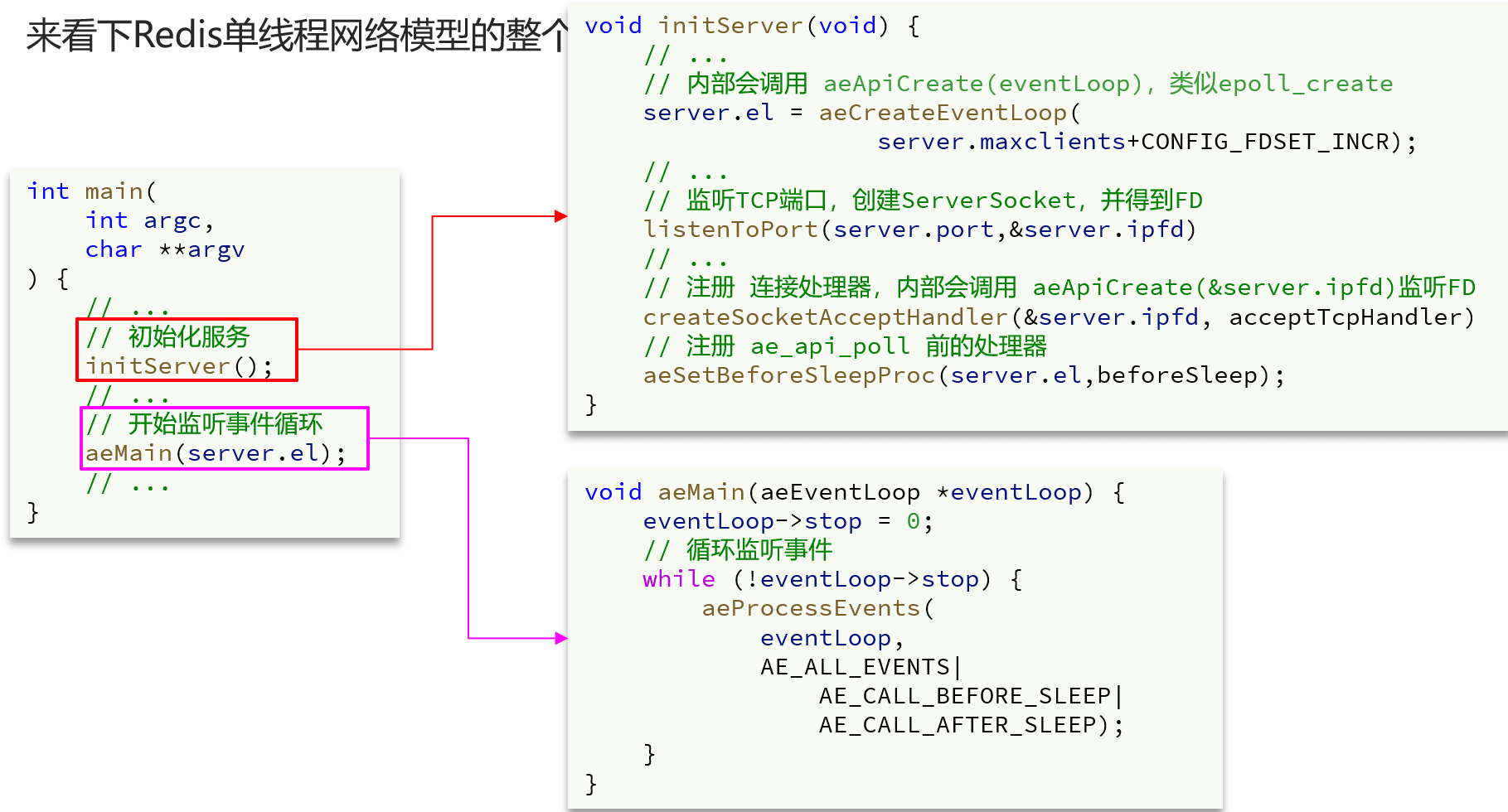

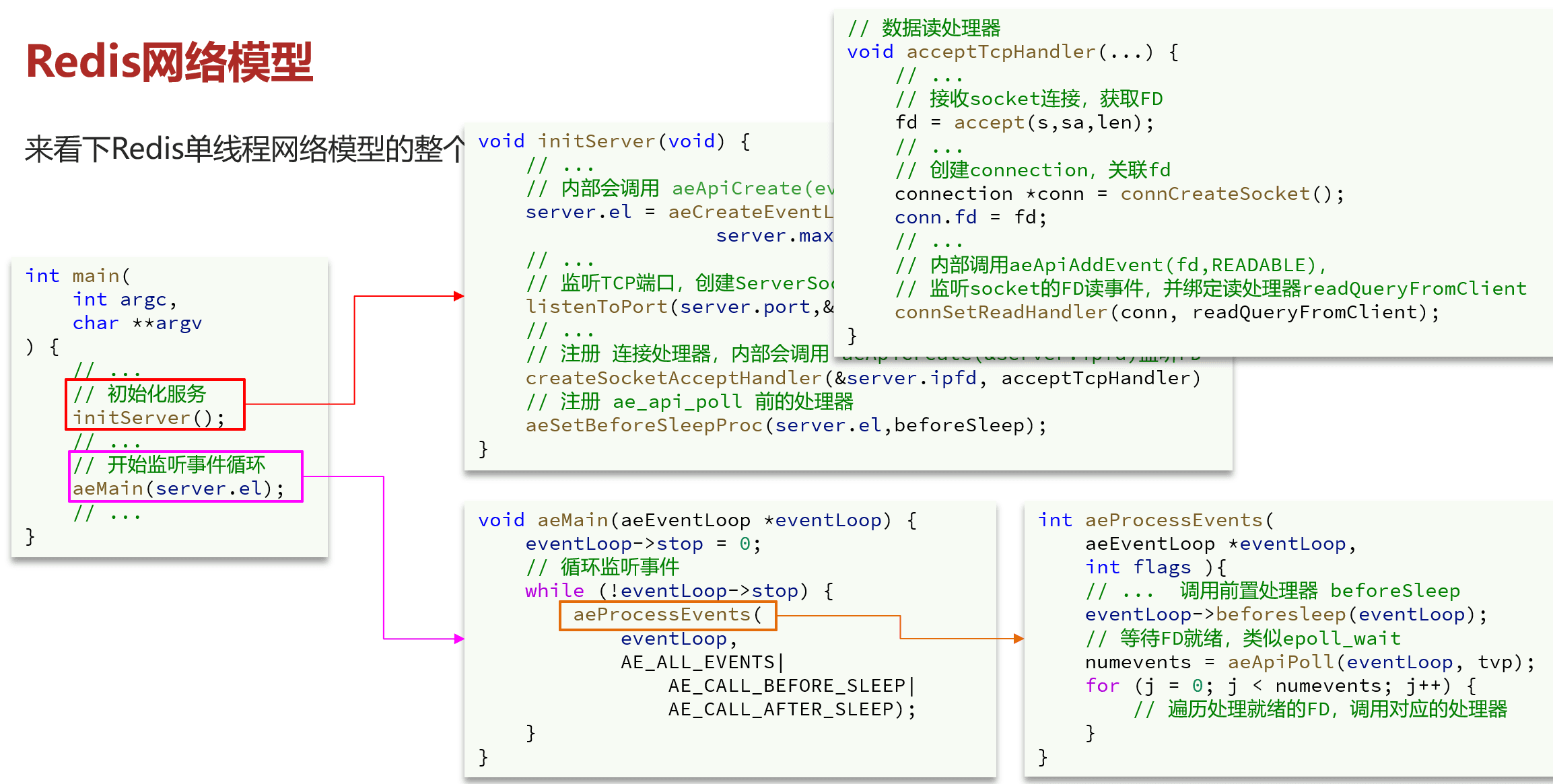

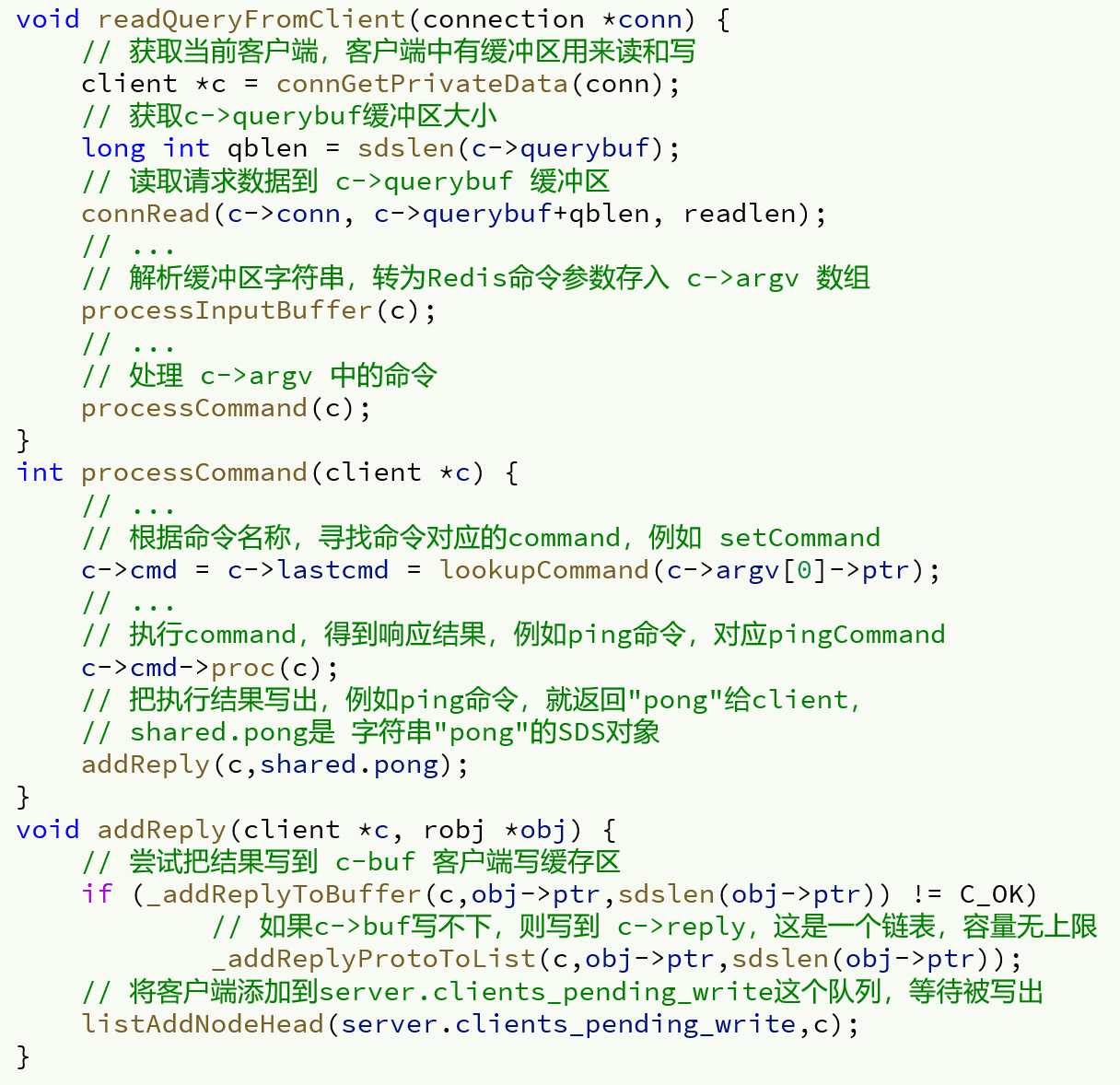

Redis Implemented Network Model#
